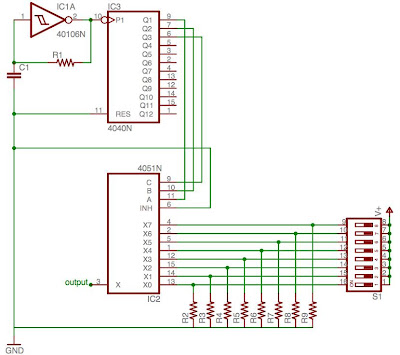

The circuit now has eight pull-down resistors which should mean for a more faithful reproduction of what the DIP switch is representing in terms of the waveform. R2 to R9 should be between 4kΩ and 20kΩ. In the breadboard example i have used 20kΩ. The values of R1 and C1 set the frequency of the waveform.
