Bitwise.rhythm generator (update)

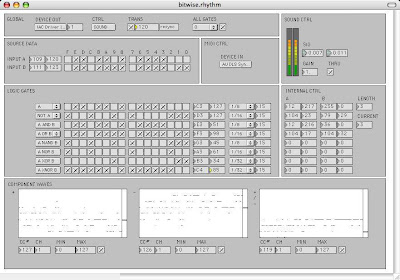

The bitwise rhythm machine has received a number of new features. These include:
  • New whole-note rhythmic divisions of 1/6, 1/12 and 1/24 (ie. triplets)
  • Mute all gates
  • Set all gates to the same logic rule
  • Set the length of each gate's loop to between 1 and 16 beat events
  • Four modes of controlling the A and B data sources, namely: NONE, INTERNAL, MIDI and SOUND.
    • NONE: The user controls the bytes of data directly using the mouse and keyboard.
    • INTERNAL: The bytes are arranged in a user-defined sequence and played through in sets of four-bar phrases. The length of the sequence (ie. the number of phrases played before repeating) can be set from 1 to 8.
    • MIDI: Pitch bytes from monophonic MIDI data from 8 channels of a device sets the 4 bytes A high, A low, B high and B low.
    • SOUND: The average amplitude level over the last beat of a bar from the incoming signal into the analog to digital input on the chosen sound device will set the 16-bit integers. The left side will set A and the right side will set B.
      • This opens the opportunity for data / sound feedback driven musical structures by routing the audio output of a MIDI device that is being controlled by the program back into the program
  • Three component waves:
    • These waves add control data output to the system, for an extra element of control.
    • The data int the waves are made up of the vertical addition and subtraction of the bits from all eight gates at any given point in time.
    • The first component wave (on the left) is a + type wave in that it adds all of the data bits from the gates to each other to form a value between 0 and 8.
    • The second component wave (middle) is a - type wave in that it subtracts all of the data bits from the gates from one another to form a value between -8 and 0.
    • The third component wave (on the right) is a +/- type wave in that every second gate is a negative and every first gate is a positive. This results in a data value from -4 to 4.
      • So, for example, if gate 1 has a high bit in the current subdivision and gate 2 has a high bit in the current subdivision but none of the other gates are high, then the + wave will be at 2 (= 1+ 1), the - wave will be at -2 (= -1 - 1) and the +/- wave will be at 0 (= 1 -1).
    • These waves can then be scaled to values in the range of 0 to 127 and sent via a desired MIDI continuous controller number and channel to a MIDI device.
    • Each wave can be individually muted to assist with easy MIDI mapping using the learn function of a MIDI device.
