Quick and Easy USB MIDI to CV Gate using Teensy 3.6. Digital pins 29, 30, 31 and 32 provide gate outputs. A21 and A22 provide CV outputs.
MIDI channel 1 note ons and offs are mapped to A21 and A22 for pitch and velocity CV, as well as pin 29 for gate. MIDI channel 22, notes C, D and E are mapped respectively to pins 30, 31 and 32.
All pins are connected to 3.5mm outputs via a 1n4148 diode and a 1k resistor. No other hardware is required.

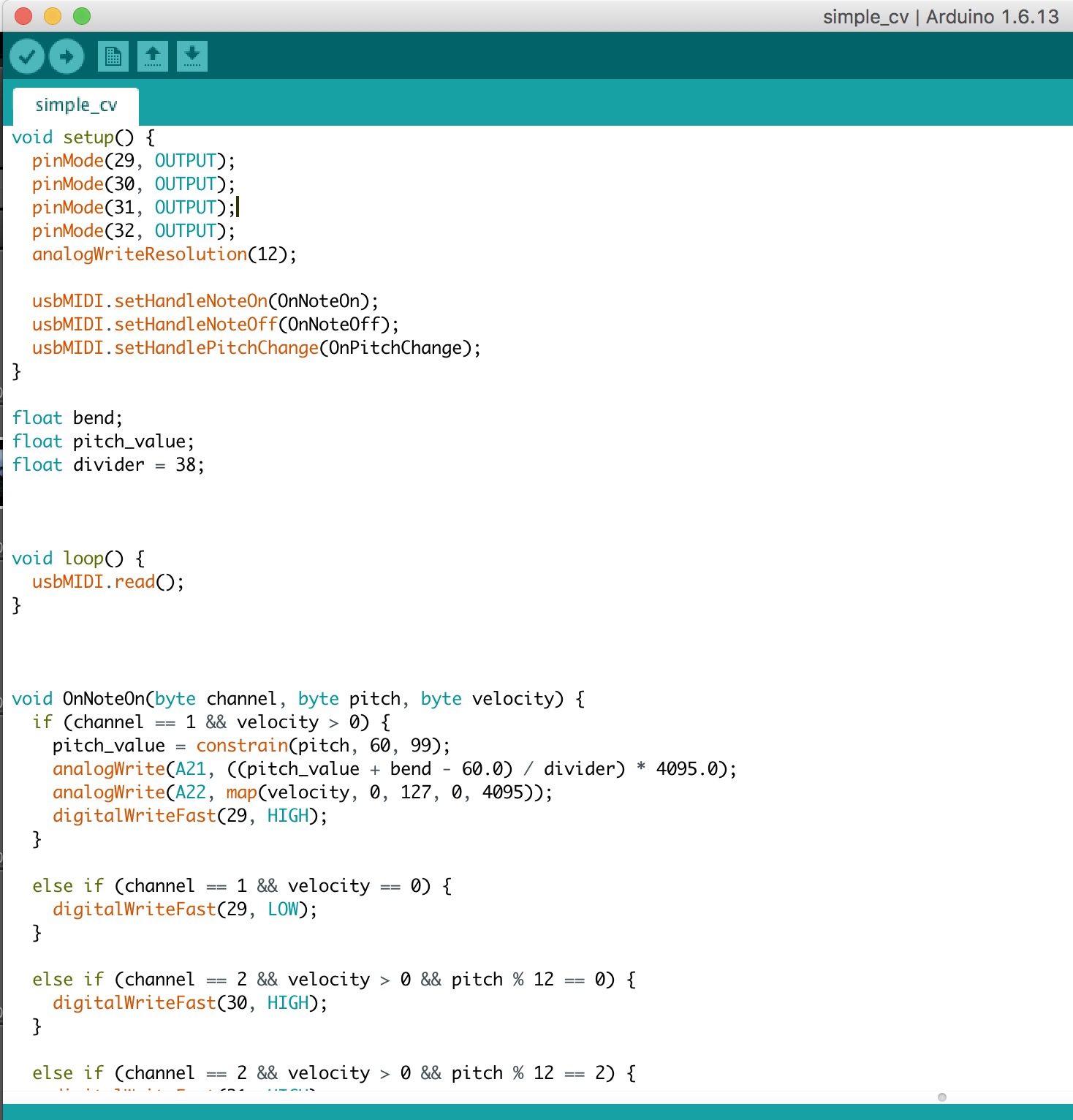

Download the code here: http://milkcrate.com.au/_other/downloads/arduino/simple_cv/simple_cv.ino
